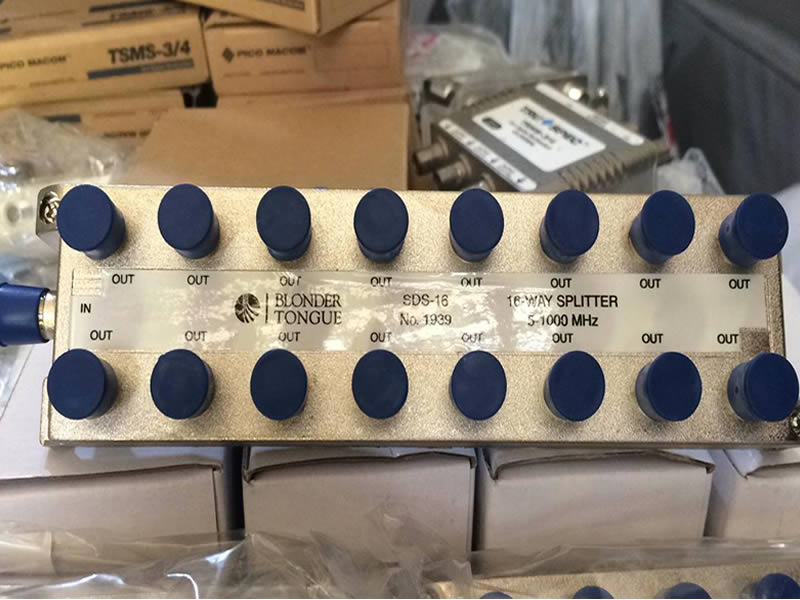

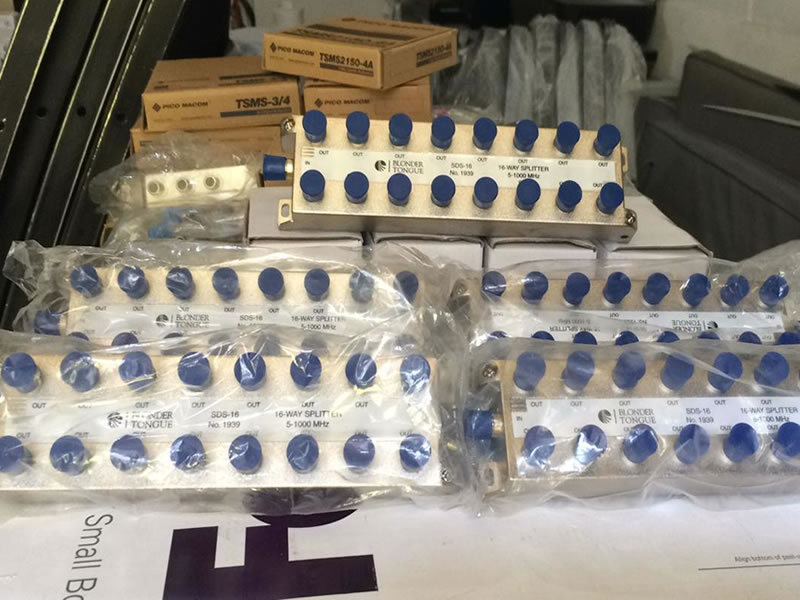

Descripción: Divisor de 16 vías con un rango de 5-1000 MHz sellado con soldadura.
Características y especificaciones:
■ Features & Benefits
• Zinc Die-cast Housing with Corrosion Protection
• Solde Back
• -120 dB RFI
■ Specifications
SDS-12 |
SDS-16 |
||
| Loss (dB) | |||
| 5 - 40 MHz: | 11 |
14 |
|
| 40 - 400 MHz: | 11 |
14 |
|
| 400 - 500 MHz: | 11.5 |
14.5 |
|
| 500 - 600 MHz: | 12 |
15.5 |
|
| 600 - 1000 MHz: | 13 |
15.5 |
|
| Isolation (dB) | |||
| 5 - 40 MHz: | 28 |
23 |
|
| 40 - 400 MHz: | 32 |
28 |
|
| 400 - 500 MHz: | 30 |
25 |
|
| 500 - 600 MHz: | 28 |
22 |
|
| 600 - 1000 MHz: | 25 |
22 |
|
| Return Loss Input (dB) | |||
| 5 - 40 MHz: | 18 |
18 |
|
| 40 - 400 MHz: | 18 |
18 |
|
| 400 - 500 MHz: | 18 |
18 |
|
| 500 - 600 MHz: | 18 |
18 |
|
| 600 - 1000 MHz: | 18 |
18 |
|
| Return Loss Output (dB) | |||
| 5 - 40 MHz: | 18 |
18 |
|
| 40 - 400 MHz: | 20 |
22 |
|
| 400 - 500 MHz: | 20 |
22 |
|
| 500 - 600 MHz: | 20 |
20 |
|
| 600 - 1000 MHz: | 18 |
18 |
|
■ Ordering Information
| Model | Stock No. | Description |
| SDS-12 | 1938 | Splitter, 12 Way Solder Back, 5-1000 MHz |
| SDS-16 | 1939 | Splitter, 16 Way Solder Back, 5-1000 MHz |
